Order no.: 0100930

SPX-20M

P272

P420

P1590

Order no.: 0100930

SPX-20M

Miniature hi-fi full range speaker, 15 W, 8 Ω

Round steel basket with rear-ventilated centering spider
Adhesive mounting or clamp mounting
Inverse laminated cone
Efficient neodymium drive system
Perfect full range reproduction with an excellent efficiency in relation to its size
25 mm voice coil of high power capability

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Miniature hi-fi full range speaker, 15 W, 8 Ω

Round steel basket with rear-ventilated centering spider
Adhesive mounting or clamp mounting
Inverse laminated cone
Efficient neodymium drive system
Perfect full range reproduction with an excellent efficiency in relation to its size
25 mm voice coil of high power capability

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

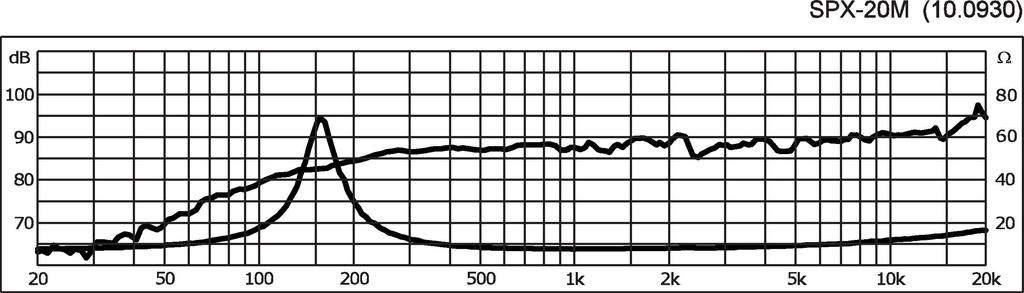

Frequency range	f3-22,000 Hz
Resonant frequency (fs)	157 Hz
Power rating (RMS)	15 W
Peak music power output (MAX)	30 W
SPL	87 dB/W/m
Suspension compl. (Cms)	0.76 mm/N
Moving mass (Mms)	1.3 g
Mech. Q factor (Qms)	4.52
Electr. Q factor (Qes)	0.46
Total Q factor (Qts)	0.42
Equivalent volume (Vas)	0.2 l
DC resistance (Re)	6.9 Ω
Force factor (BxL)	4.50 Tm
Voice coil induct. (Le)	0.13 mH
Voice coil diameter	Ø 25 mm
Voice coil former	Kapton
Linear excursion (X_MAX)	± 0.5 mm
Eff. cone area (Sd)	13 cm²
Magnet weight	neodymium

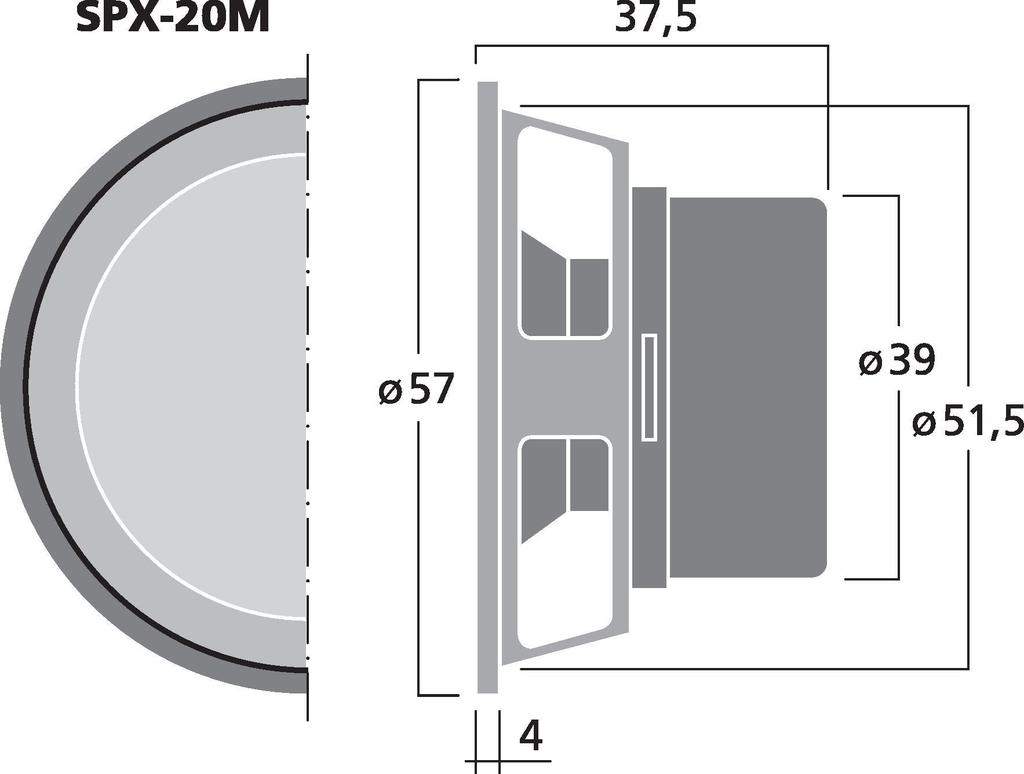

Magnet diameter	Ø 39 mm
Mounting cutout	Ø 51.5 mm
Mounting depth	33.5 mm
Dimensions	Ø 57 mm x 37.5 mm
Outside diameter	Ø 57 mm
Width	Ø 57 mm
Height	Ø 57 mm
Depth	37.5 mm
Colour	black/silver
Admiss. ambient temp.	0-40 °C
Weight	0.17 kg
Packing unit	1
Type of speaker	2"
Packaging dimensions (W x H x L)	0.06 x 0.045 x 0.06 m
Gross weight	0.185 kg
Net weight	0.172 kg

EAN code	4007754217001
Net weight	0.172 kg
