Order no.: 0163730

TS-C20-500/T

P2000 P1516 P1330 P1240 P1544
Order no.: 0163730

TS-C20-500/T

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • 4 x 7.7 cm (3") waterproof full range speaker
  • 4 power taps: 20/15/10/5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting
Manufacturer information
ic audio GmbH
Boehringerstr. 14a
68307 Mannheim
Germany
info@ic-audio.com
continue

About

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • 4 x 7.7 cm (3") waterproof full range speaker
  • 4 power taps: 20/15/10/5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting
Manufacturer information
ic audio GmbH
Boehringerstr. 14a
68307 Mannheim
Germany
info@ic-audio.com

Specifications

Active/passive passive
Transmission technology 100 V
Total power rating 20 W
Power rating (RMS) 20/15/10/5 W

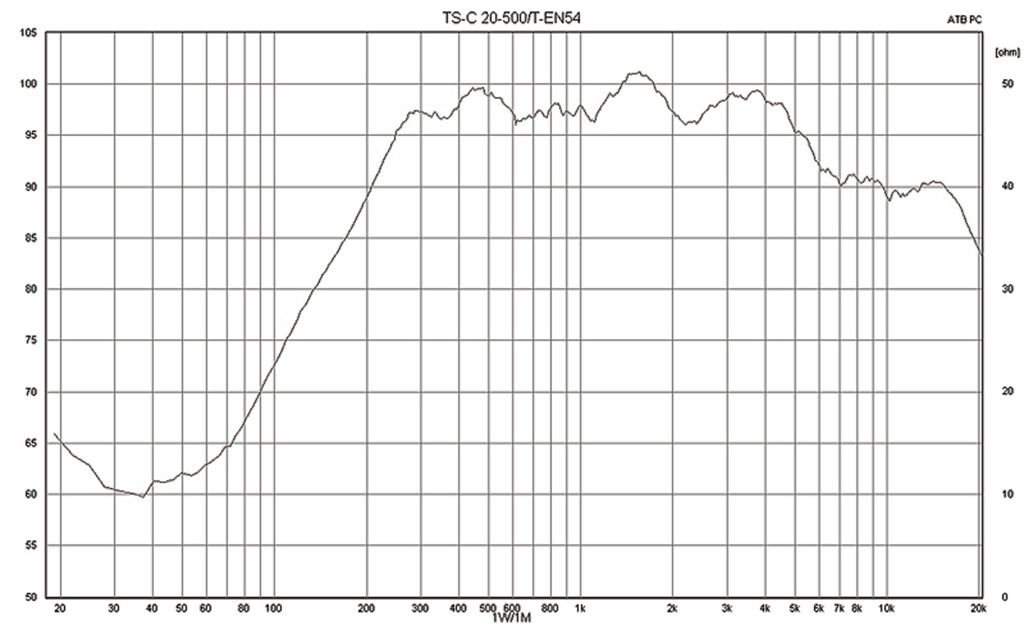

Frequency range 200-17,000 Hz
Full range speaker 4 x 77 mm
Number of speakers 4
Speaker size 7.5 cm (3")
SPL 97 dB/W/m
Max. rated SPL 109 dB

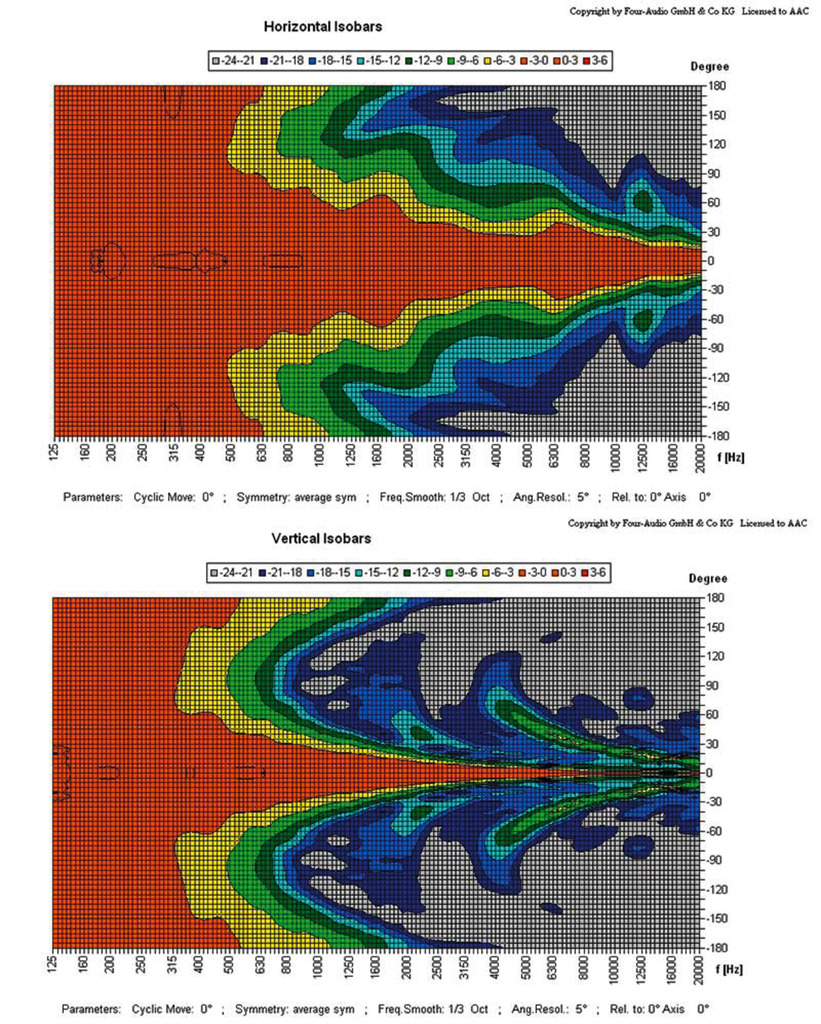

Radiation angle/beam angle H: 149°/V: 38°
Radiation angle, horizontal 149°
Radiation angle, vertical 38°
Housing material aluminium
Colour white aluminium, RAL 9006
Mounting device wall bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions 100 x 510 x 92 mm
Width 100 mm
Height 510 mm
Depth 92 mm
Weight 2.8 kg
Inputs ceramic screw terminals
Packaging dimensions (W x H x L) 0.18 x 0.2 x 0.6 m
Gross weight 3.3 kg
Net weight 2.83 kg
EAN code 4260590180490
Net weight 2.83 kg
