| Active/passive | passive |
| Transmission technology | cable |
| Total power rating | 40 W |
| Power rating (RMS) | 20 W |
| Impedance | 8 Ω |
| Frequency range | 230-10,000 Hz |
| Number of speakers | 1 |
| SPL | 108 dB/W/m |

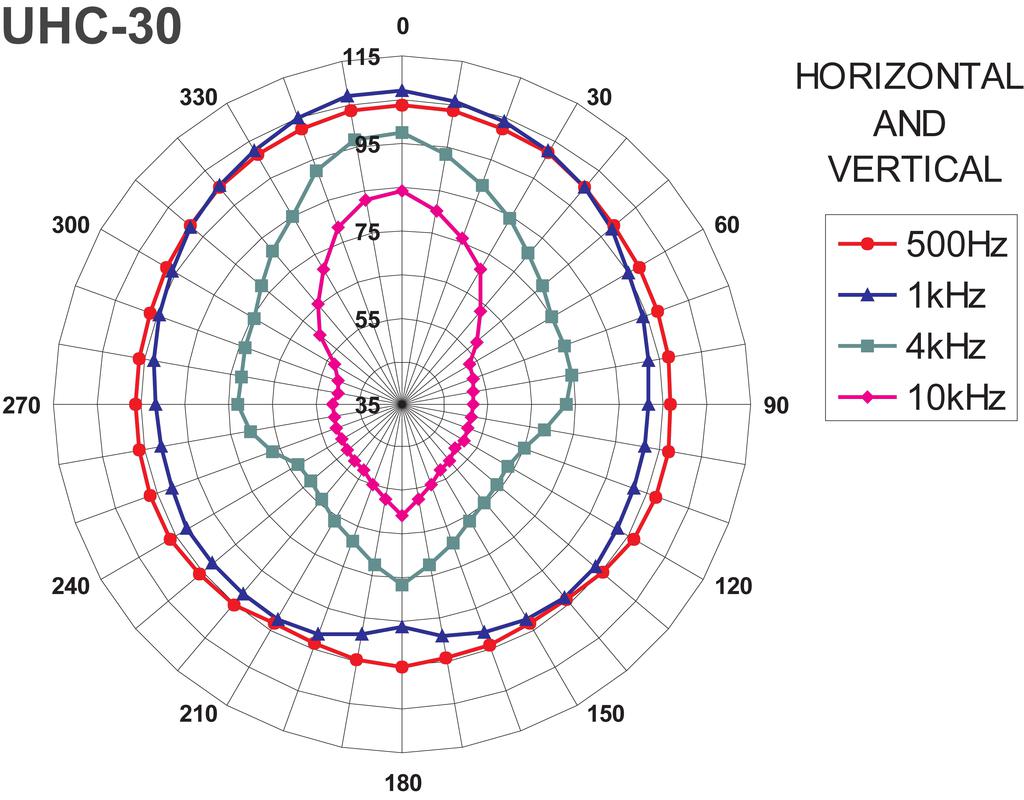

| Radiation angle/beam angle | H: 75°/V: 75° |
| Radiation angle, horizontal | 75° |
| Radiation angle, vertical | 75° |
| Housing material | aluminium |
| Colour | dark grey |
| Mounting device | stainless steel mounting bracket |
| Protection class | IP66 |
| Admiss. ambient temp. | -20 °C to +50 °C |
| Dimensions | Ø 310 mm x 285 mm |
| Width | Ø 310 mm |
| Height | Ø 310 mm |
| Depth | 285 mm |
| Weight | 1.89 kg |
| Inputs | cable connection |
| Replacement voice coil | IT-230/VC |
| Other features | weatherproof |
| Packaging dimensions (W x H x L) | 0.33 x 0.32 x 0.33 m |
| Gross weight | 2.7 kg |
| Net weight | 1.89 kg |
| EAN code | 4007754031188 |
| Net weight | 1.89 kg |
20 W (IT-30)
25 W (IT-35)
40 W (UHC-30)
25 W (NR-33KS)
20/15/10/5 W (IT-30)
25/20/15/10/5 W (IT-35)
20 W (UHC-30)
12 W (NR-33KS)
