About

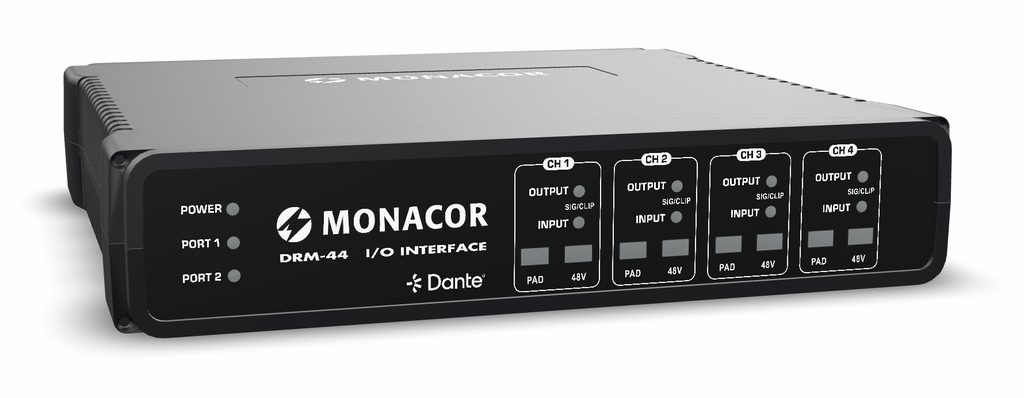

Bi-directional analogue/Dante® bridge
- 4 balanced analogue inputs and 4 balanced analogue outputs via network (Dante®/AES67) for fixed installations
- Built-in DSP audio processing on all channels: parametric EQs, compressors, delays, etc.
- 8×8 audio matrix for flexible routing and premixing between inputs and outputs
- Web server with graphical interface for easy configuration and control via network devices
- Very high audio quality: signal-to-noise ratio > 120 dB, distortion factor < 0.003 %

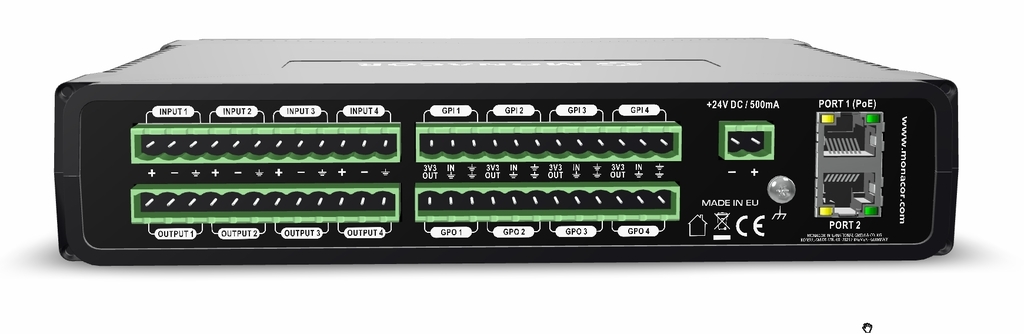

- GPI/GPO connections (inputs/outputs) for controlling external devices or recording control inputs (e.g. buttons, sensors, alarm systems)
- Flexible power supply: via included power supply unit ( DC24 V) or via PoE (Power over Ethernet)
- 241 mm housing (½ 19") for rack mounting (supplied with rack bracket)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.
