Analogue matrix routers
Products
General Information:
Frequency range:
20-20,000 Hz (line)80-18,000 Hz (mic)
20-20,000 Hz (line)80-18,000 Hz (mic)
Mic 1:
300 mV/660 Ω
300 mV/660 Ω
Order no.: 0173800
Audio matrix router
Description:
splitter
splitter
Frequency range:
20-20,000 Hz
20-20,000 Hz
Input signal:
0.775 V
0.775 V
Order no.: 0171890

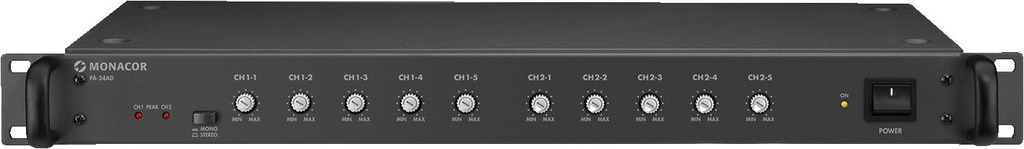

10-way PA line splitter
Channels:
5
5
Zones:
4
4
Inputs:
5 mV/4 kΩ, 100 mV/10 kΩ (mic/line), 100 mV/30 kΩ (line)
5 mV/4 kΩ, 100 mV/10 kΩ (mic/line), 100 mV/30 kΩ (line)
Order no.: 0173450

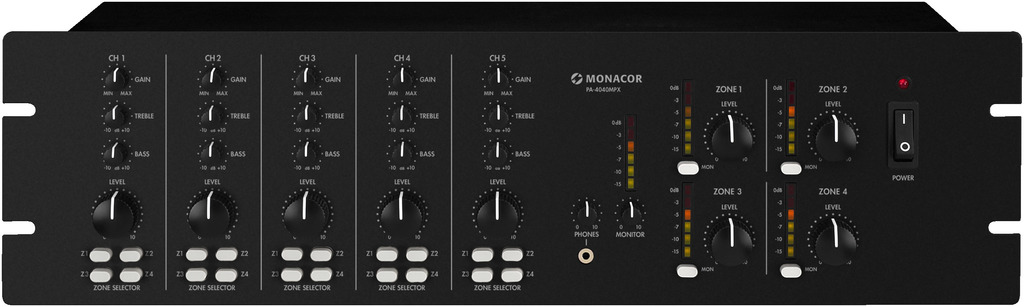

4-zone mixer
Channels:
6
6
Zones:
4
4
Inputs:
2.5 mV/5 kΩ, bal., 250 mV/15 kΩ, bal. (mic/line),250 mV/15 kΩ (line), 250 mV/10 kΩ (telephone paging)
2.5 mV/5 kΩ, bal., 250 mV/15 kΩ, bal. (mic/line),250 mV/15 kΩ (line), 250 mV/10 kΩ (telephone paging)
Order no.: 0174760

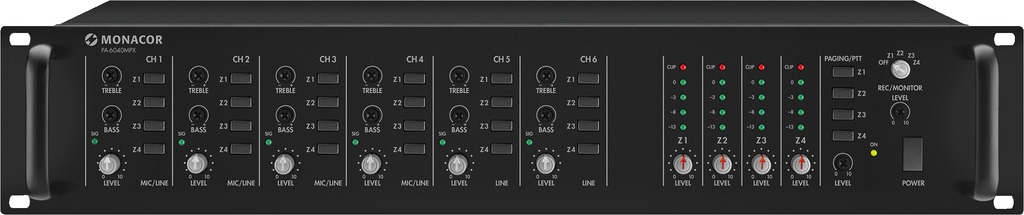

4-zone mixer
