Order no.: 1000811

IT-400DTM

P1330 P1240 P_DANTE P1557 P420 P1486 P1544
Order no.: 1000811

IT-400DTM

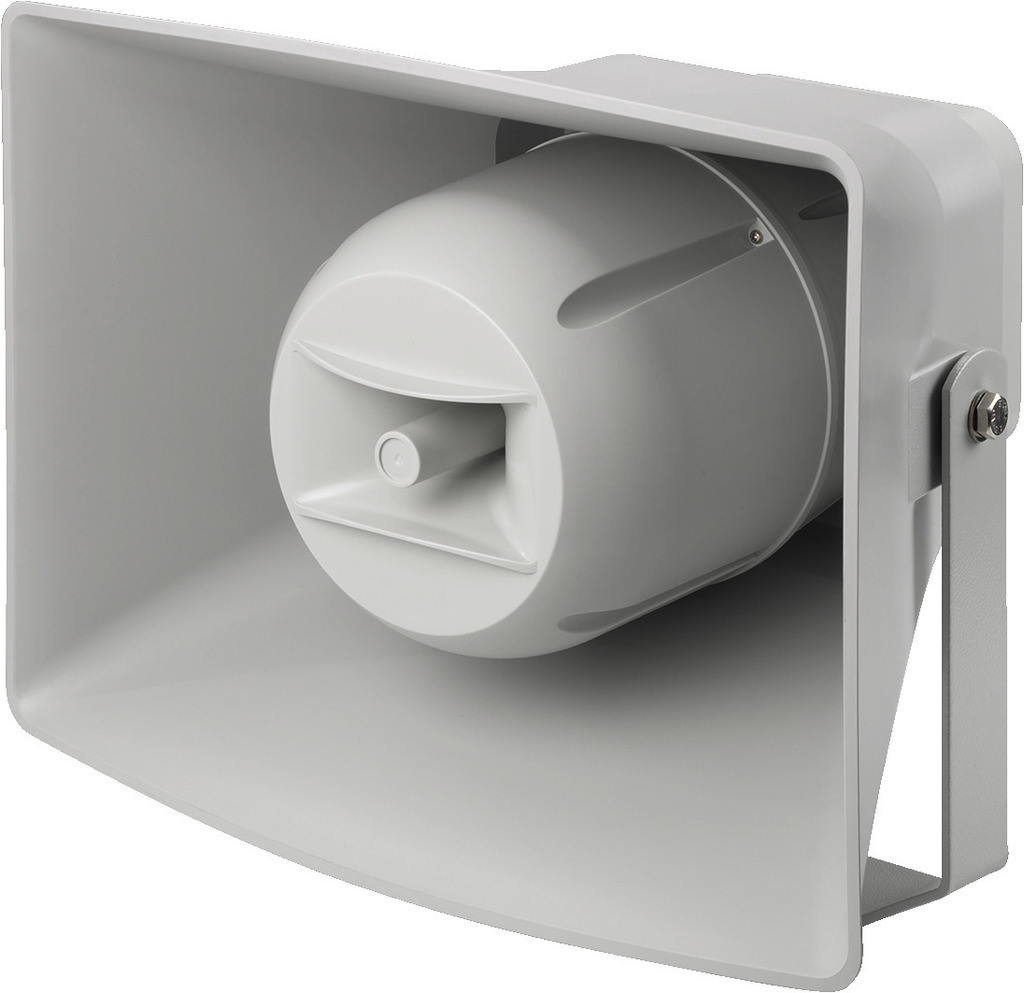

Weatherproof active horn speaker (music horn), 2-way technology
  • With integrated Dante® module
  • 30 W amplifier
  • Power supply via PoE (Power over Ethernet)
  • Weatherproof and IP66 certified
  • Very wideband sound with a distinct bass volume, even at very high volume levels
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • Robust plastic housing
  • Supplied with mounting bracket and screws made of stainless steel
System requirements for Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
continue

About

Weatherproof active horn speaker (music horn), 2-way technology
  • With integrated Dante® module
  • 30 W amplifier
  • Power supply via PoE (Power over Ethernet)
  • Weatherproof and IP66 certified
  • Very wideband sound with a distinct bass volume, even at very high volume levels
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • Robust plastic housing
  • Supplied with mounting bracket and screws made of stainless steel
System requirements for Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Specifications

Active/passive active
Transmission technology Dante ®
Total output power 30 W
Power rating (RMS) 30 W

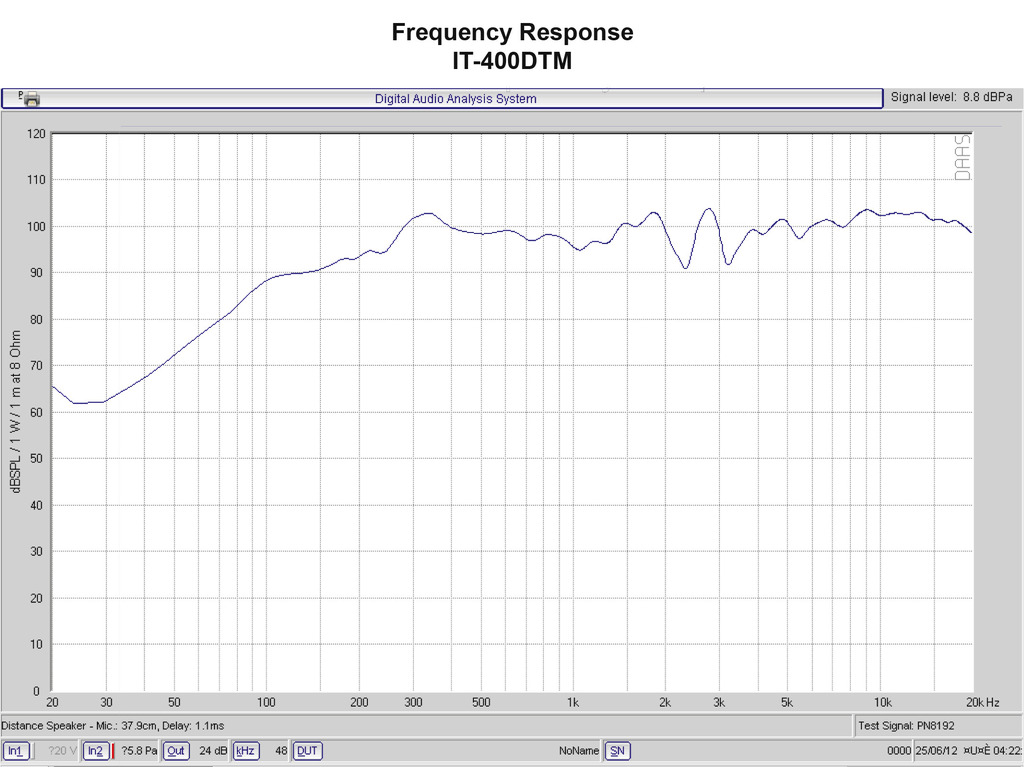

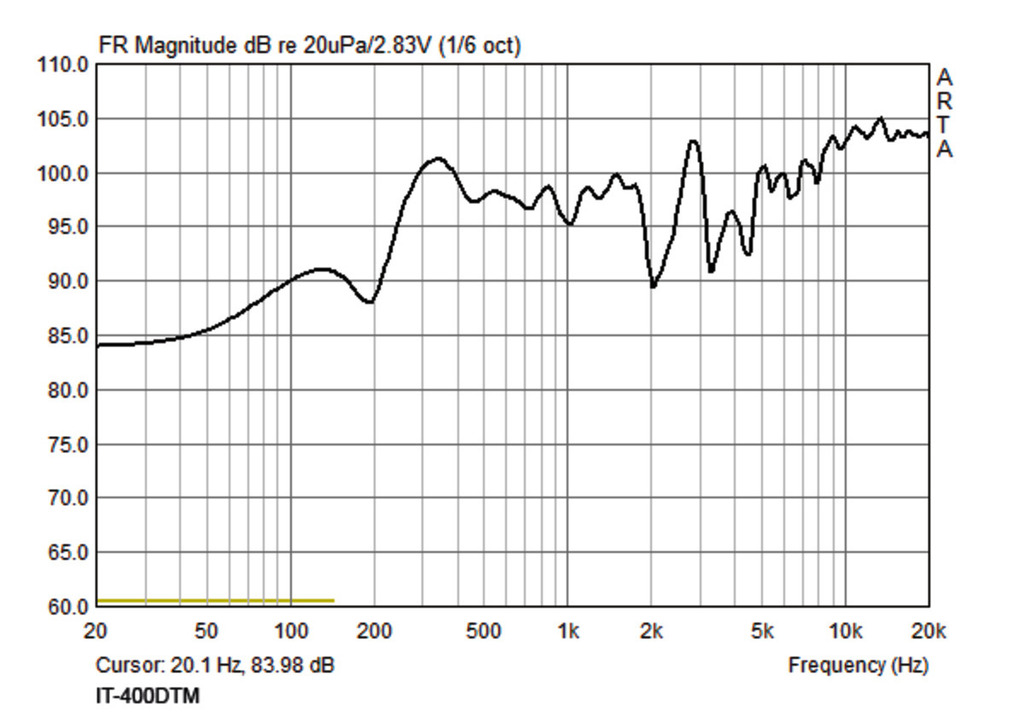

Frequency range 100-20,000 Hz
Input signal Dante®
Number of speakers 2
SPL 98 dB/W/m
Max. rated SPL 113 dB

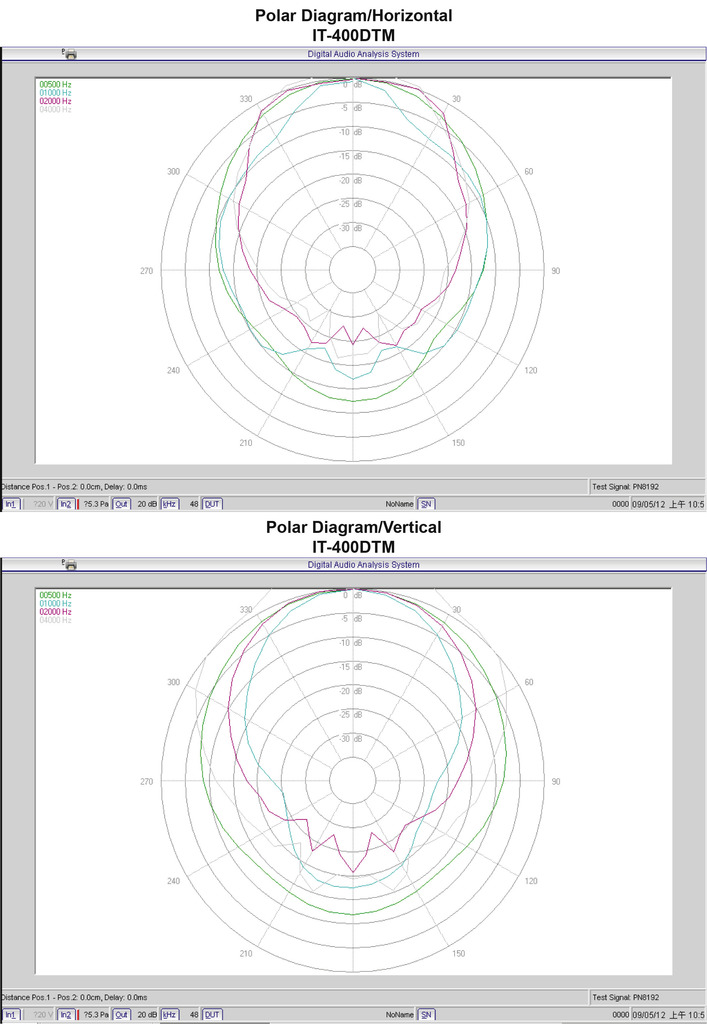

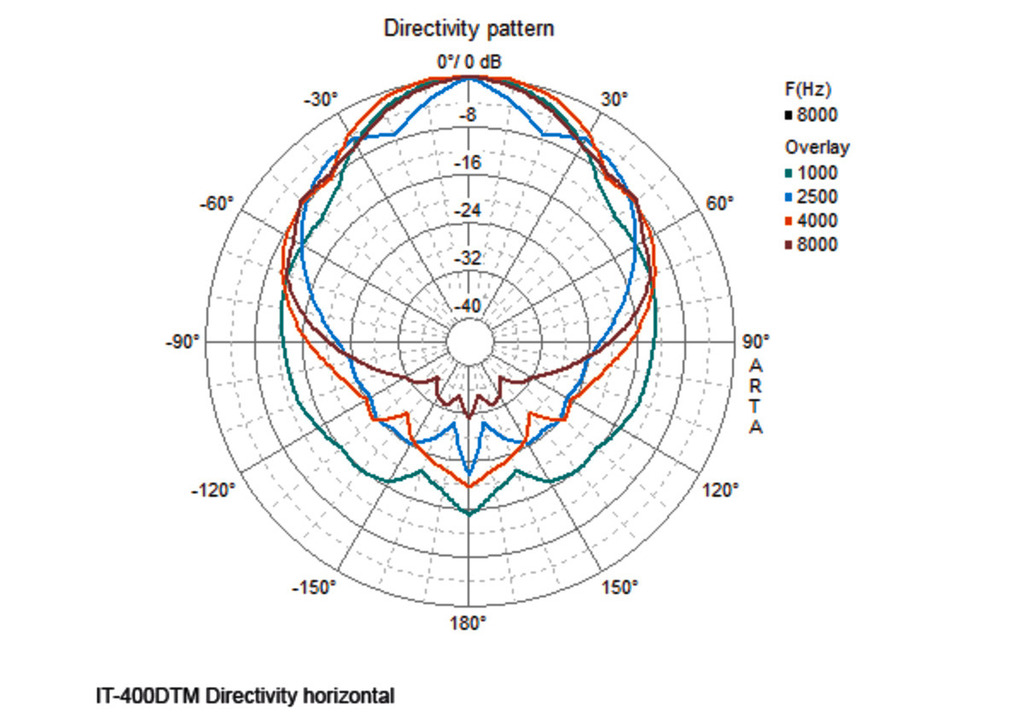

Radiation angle/beam angle H: 100°/V: 60°
Radiation angle, horizontal 100°
Radiation angle, vertical 60°
Features 2-way
Housing material ABS
Colour grey
Mounting device stainless steel mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C
Power supply PoE
Dimensions 420 x 335 x 400 mm
Width 420 mm
Height 335 mm
Depth 400 mm
Weight 6.1 kg
Inputs 1 x RJ45
Other features weatherproof
Packaging dimensions (W x H x L) 0.36 x 0.46 x 0.44 m
Gross weight 7.45 kg
Net weight 6.1 kg
EAN code 4007754417647
Net weight 6.1 kg
