Order no.: 1001174

UR-2Q

Order no.: 1001174

UR-2Q

4-channel diversity UHF PLL wideband receiver, with Dante® audio output. For sophisticated nightclubs, multi-purpose halls, hotels, conferences and small to medium-sized performances Carrier frequency: 470-600 MHz Bandwidth: 130 MHz SYNC function for synchronising receiver with transmitter Auto-scan function (AFS) 6 different audio equalizers (Magic EQ) OLED status indication for channel or frequency, name of receiver, battery status of the transmitters LED for indicating RF signal strength and AF signal strength, antenna A/B Removable antennas (BNC connection), with 12 V supply voltage for active antennas or antenna boosters XLR output per channel (bal.) XLR output (bal.) for mixed signal 482 mm (19") rack installation, 1 RU There are restrictions or requirements within the EU! Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”! Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.

continue

About

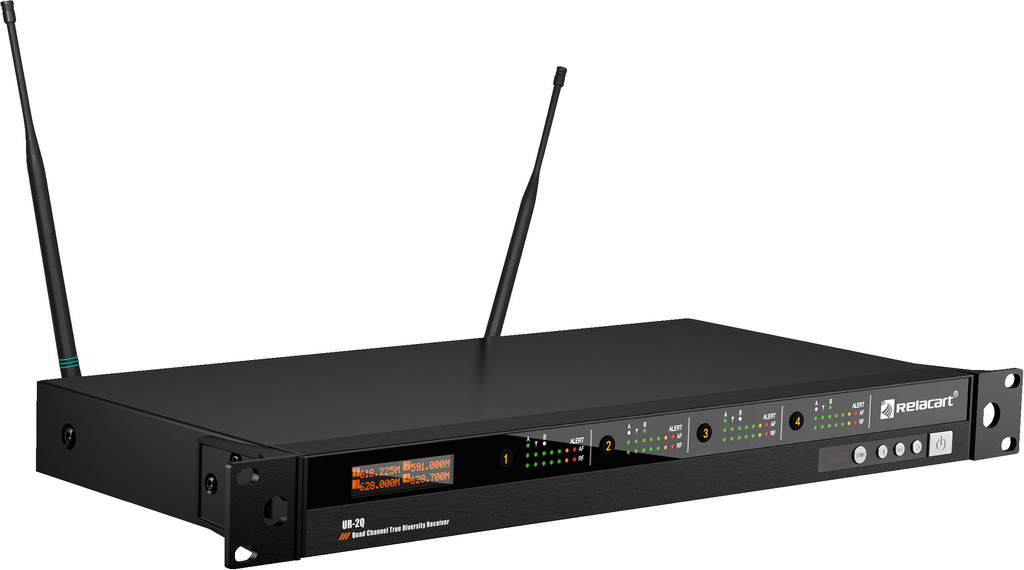

4-channel diversity UHF PLL wideband receiver,

with Dante^® audio output.

For sophisticated nightclubs, multi-purpose halls, hotels, conferences and small to medium-sized performances
Carrier frequency: 470-600 MHz
Bandwidth: 130 MHz
SYNC function for synchronising receiver with transmitter
Auto-scan function (AFS)
6 different audio equalizers (Magic EQ)
OLED status indication for channel or frequency, name of receiver, battery status of the transmitters
LED for indicating RF signal strength and AF signal strength, antenna A/B
Removable antennas (BNC connection), with 12 V supply voltage for active antennas or antenna boosters
XLR output per channel (bal.)
XLR output (bal.) for mixed signal
482 mm (19") rack installation, 1 RU

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.

Specifications

Description	receiver unit
Carrier frequency range	470-600 MHz
Audio frequency range	80-18,000 Hz
Channels	4
THD	< 0.7%
Power supply receiver	˜ 110-240 V/50-60 Hz/45 W
Width receiver	480 mm
Height receiver	43 mm
Depth receiver	350 mm
Weight receiver	3.93 kg

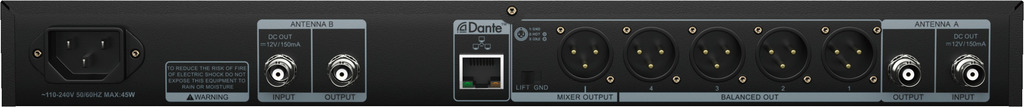

Connections receiver	5 x XLR, bal., 1 x RJ45 (Dante^®)
