Order no.: 1001514

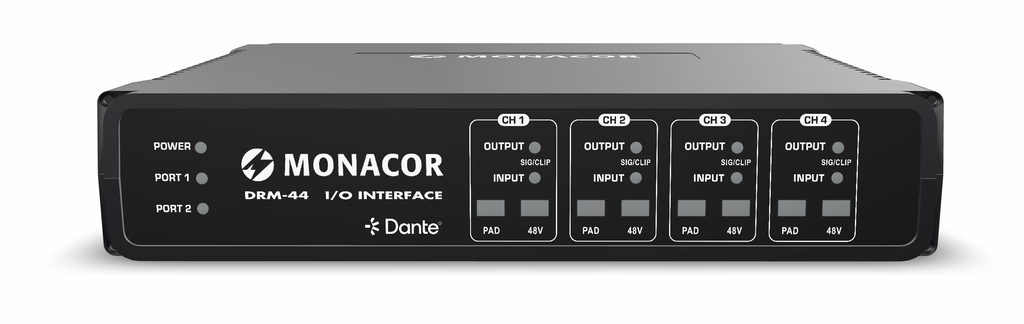

Bi-directional analogue/Dante® bridge

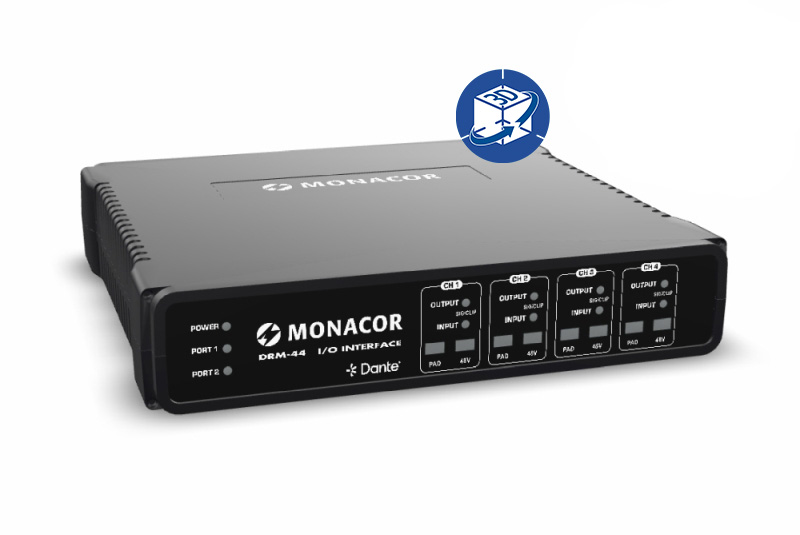

DRM-44 – The Intelligent Connection Between Analog Audio and Dante® Networks
Maximum Flexibility, Outstanding Sound Quality, and Full Control
With the DRM-44, system integrators, event technicians, and installation professionals receive a powerful solution for the seamless integration of analog audio sources into modern Dante®/AES67 networks. Thanks to its integrated DSP, flexible routing matrix, and intuitive web control, installation effort is significantly reduced while maintaining maximum audio quality and control. The DRM-44 reduces system complexity, saves setup time, and gives you complete control over every audio signal.
Highlights
The DRM-44 is a bidirectional analog/Dante® audio matrix specifically
developed for professional audio installations. It combines high-quality
signal conversion with comprehensive signal processing and flexible
control – all in a compact half-19" housing. This means less hardware,
reduced cabling, and significantly shorter installation times without
compromising performance or sound quality. For audio professionals,
there is virtually no learning curve: the device is easy to operate once
the basics of audio networking are understood.
- Seamless Integration
4x4 Analog ↔ Dante®/AES67
- Integrated DSP
EQ, compressor, and delay on every channel
- Maximum Flexibility
8x8 routing matrix for individual signal flows
– perfect for complex audio setups - Simple Control
Webbrowser-based configuration via web server
– no external software required
- Highest Audio Quality
Signal-to-noise ratio > 120 dB, distortion factor < 0.003 %
- Flexible Power Supply
PoE (Power over Ethernet) or external power supply
With the DRM-44, you are choosing a powerful, flexible, and future-proof solution for professional audio integration. Do you have questions about our Dante® matrix solution, or would you like to get started on a project right away? Contact our sales team or view the product in our webshop.
The built-in DSP makes external signal processors unnecessary. Tailor each signal precisely to your needs—right in the device and in real time.
Built-in DSP features:
Parametric equalizers
Dynamic processing (compressor)
Delay functions
Channel-specific adjustment
Additional integrated signal processing
With the integrated 8x8 audio matrix, you can freely determine which signals go where—including premixing and complex signal flows.
8x8 audio matrix:
- Freely configurable routing
- Premixing possible
- Ideal for complex installations
Thanks to its built-in web server, the DRM-44 can be easily configured using any network-connected device—whether a laptop, tablet, or smartphone. No additional software is required. Access your system anytime, anywhere.
Features:
- Intuitive graphical user interface
- Real-time adjustments during operation
- Network-based control
The DRM-44 can be easily integrated into existing control systems via its built-in GPI/GPO ports. Ideal for automated processes and custom solutions.
Application examples:
- GPI: Connection of switches, potentiometers, ballasts, alarm systems, ...
- GPO: Control of all types of external devices, triggering PowerPoint presentations, ...
Technical Data
Bi-directional analogue/Dante® bridge
- 4 balanced analogue inputs and 4 balanced analogue outputs via network (Dante®/AES67) for fixed installations
- Built-in DSP audio processing on all channels: parametric EQs, compressors, delays, etc.
- 8x8 audio matrix for flexible routing and premixing between inputs and outputs
- Web server with graphical interface for easy configuration and control via network devices
- Very high audio quality: signal-to-noise ratio > 120 dB, distortion factor < 0.003 %

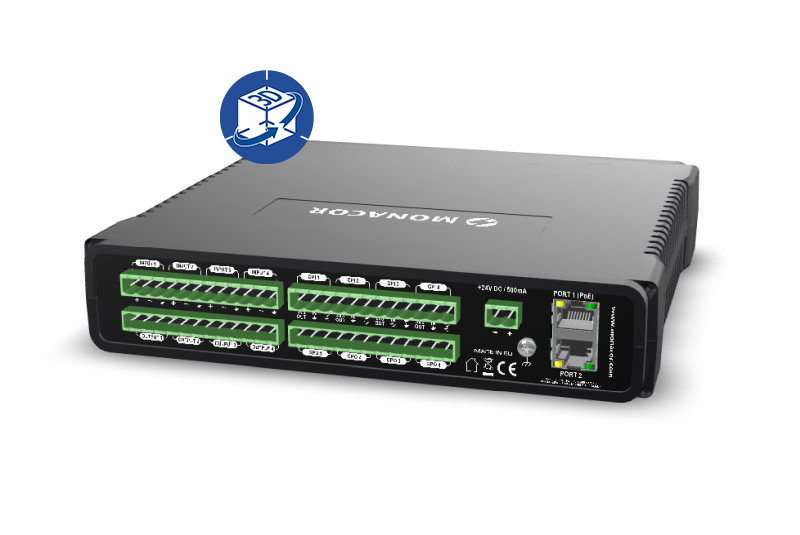

- GPI/GPO connections (inputs/outputs) for controlling external devices or recording control inputs (e.g. buttons, sensors, alarm systems)
- Flexible power supply: via external power supply unit (24 V) or via PoE (Power over Ethernet)
- 241 mm housing (½ 19") for rack mounting (supplied with rack bracket)
Developed for professional audio installations
The DRM-44 demonstrates its strengths wherever analog audio signals must be integrated reliably, flexibly, and in the highest quality into modern network infrastructures. Thanks to its compact design, powerful DSP functions, and simple control, it is suitable for a wide range of professional applications – from small installations to complex audio systems.
Conference and Meeting Rooms
In modern conference environments, stable and clear audio transmission is essential. The DRM-44 enables the seamless integration of microphones, presentation systems, and PA solutions into a centralized audio network.
Typical Advantages:
- Clear speech transmission through DSP optimization
- Centralized control of all audio sources
- Easy integration into existing Dante® networks
Hotels and Hospitality
Whether background music, announcements, or multi-zone sound systems – the DRM-44 offers maximum flexibility for dynamic audio requirements in hotels, restaurants, and bars.
Typical Advantages:
- Individual audio zones through flexible routing matrix
- Sound adjustment for different rooms
- Integration into control systems (e.g., scene control)
Event and Venue Locations
Flexibility is crucial in event spaces. The DRM-44 enables rapid adjustment of signal paths and sound – ideal for changing sound reinforcement setups.
Typical Advantages:
- Fast routing for different events
- High audio quality even in complex setups
- Compact design for rack integration
Educational Institutions
From lecture halls to school buildings: the DRM-44 ensures reliable audio distribution and easy operation – even for non-technical staff.
Typical Advantages:
- Easy operation via web interface
- Integration of microphones and media technology
- Scalability for larger campus solutions
